Name: XGC130 Second Hand Crawler Cranes Hydraulic Crawler Crane For Construction Industry
Brand: XCMG
Price: 1 USD

Brand Name : XCMG

Model Number : XGC130

Place of Origin : China

MOQ : One Crane

Price : Negotiable Price

Payment Terms : L/C,T/T

Supply Ability : Supply According to Customer Needs

Delivery Time : According to Order Confirmatio

Packaging Details : Packing According to Customer Requirements

Max Boom Length : 55m

System : Hydraulic

Maximum Gradeability : 30%

Hoist Speed : 128 m/min

Fly Job Length : 9-18 m

Max Weight : 50.2 tons

Model : XGC 130

Gradeability : 30%

Engine : 200/183 KW

Operating Weight : 25 tons

Max Lifting Capacity : 130 T

Fly Jib Length : 13-25 m

Contact Now

Ⅰ.Main technical parameters

Table 2-1 XGC130 Main technical parameters of hydraulic crawler crane

Project		Unit	Standard Configuration
Main boom working condition	Maximum rated lifting capacity	t	135
	Main boom length	m	16～76
	Main boom working angle	°	30～80
Fixed jib condition	Maximum rated lifting capacity	t	20
	Fixed jib length	m	13～31
	Main arm working angle	°	30～80
	Main boom length	m	37～64
	Fixed angle between jib and main boom	°	15°,30°
Speed Parameters	Maximum lifting moment	t.m	721
	Maximum single rope speed of main hoisting mechanism (No load, fifth floor)	m/min	118
	Maximum single rope speed of auxiliary hoisting mechanism (no load, fourth floor)	m/min	112
	Maximum single rope speed of main boom luffing mechanism (no load, fifth floor)	m/min	2×45
	Maximum slewing speed	r/min	1.6
	Travel speed (high speed/low speed)	Km/h	1.3/0.6
	Gradeability	%	30
	Average ground pressure	Mpa	0.083
Engine	Model	/	/
	Rated Power	KW	206
	Rated speed	Km/h	2200
Transport parameters	Machine weight (full configuration, main hook, 16m main boom)	t	125
	Max mass of a single unit in transport state (including counterweight self-disassembly cylinder)	t	35.7
	Maximum dimensions of a single unit (main machinery) in transport state (length × width × height)	m	11000×3000×3300

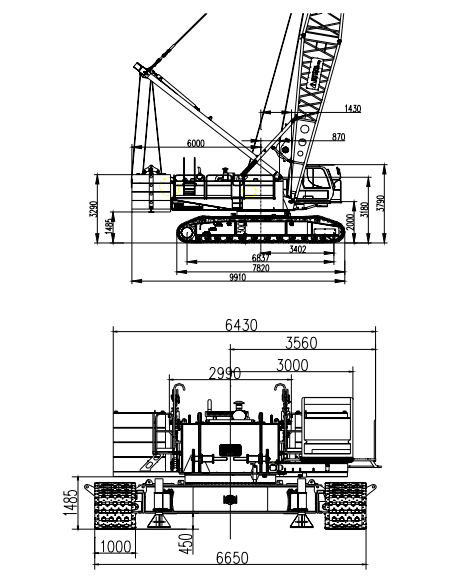

Ⅱ.External dimensions

XGC130 Second Hand Crawler Cranes Hydraulic Crawler Crane For Construction Industry

Table 2-1 XGC130 Hydraulic crawler crane dimensions
